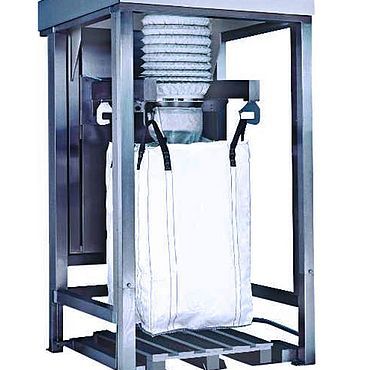

Automatic filling machine BG

verticalfloor-standingfor big bags

Filling Stations with overhead scales are especially suitable for transportable systems as well as for robust industrial applications. The overhead scale is placed on a protected position and minimizes the risk of potential damages through forklifts. Filling stations with overhead scales can optionally be mounted in a hanging position so there is no need for a floor support. An optimal cleaning of the system and the surroundings is therefore guaranteed. Frame version with overhead scale Accessible from one side Automatic adaption to different FIBC sizes Feeding with hand palett truck possible Optional: Product compaction via clocked control Lifting force depending on the design up to 1500 kg Different materials and designs Customized designs Integration of different filling heads Square - and round tube frames The empty FIBC is mounted to the loop holders of the supporting frame. The entire station can be installed in a hanging- or standing position. An integration of overhead scales is possible. Depending on the application, different filling heads can be connected. The FIBCs can accurately be filled with the product by a defined clocked control. Once the filling process is done, the FIBC can be carted off with a forklift or a palett truck.
