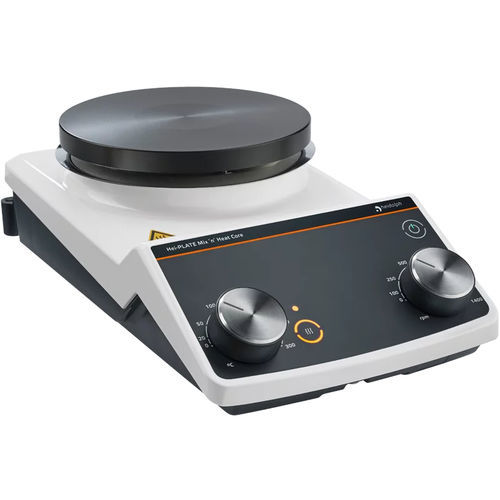

Magnetic laboratory stirrer Hei-PLATE Mix 'n' Heat Core

analogbenchtopheating

In accordance with the motto "simply stir and heat", our entry-level model Hei-PLATE Mix 'n' Heat Core was designed with two rotary knobs to allow direct access to the two main functions. The speed and temperature are set using a scale. The maximum values are 1,400 rpm and 300 °C. This magnetic stirrer is very easy to use and is equipped with the most important safety features. The large safety distance between the heating plate and the control elements, as well as the optical residual heat indicator at temperatures > 50 °C, protect against burns. The heating function can be activated separately and is indicated by the LED button lighting up. The patented Kera-Disk® footprint made of anodized aluminum, is chemical-resistant, scratch-proof, and has a diameter of 135 mm. This unique size makes it suitable for use with many accessories and samples on a small footprint. The material used also enables the fastest heating times. Dimensions (W × H × D): 168 × 101 × 299 mm Usable surface heating plate: ∅ 135 mm Weight: approx. 3 kg Maximum permissible load: 25 kg Drive: EC motor, left-turning Heating power: 800 W at 230 V (EU); 600 W at 115 V (US) Heating control:PID Protection class (EN 60529): IP42 Acoustic pressure: < 50 db(A) Rated voltage: 230 V, 50/60 Hz (EU); 115 V, 50/60 Hz (US Connection: L+N+PE Protection class: I Overvoltage category: II Degree of pollution: 2 Power input: Normal operation 230 V: 825 W (EU); Normal operation 115 V: 625 W (US); Standby mode: 1.7 W EMC class: B, Group 1 Operating temperature: 5 °C – 31 °C at up to 80 % rel. humidity 32 °C – 40 °C at up to 50 % rel. humidity (decreasing linearly) Installation altitude: up to 2,000 m asl
