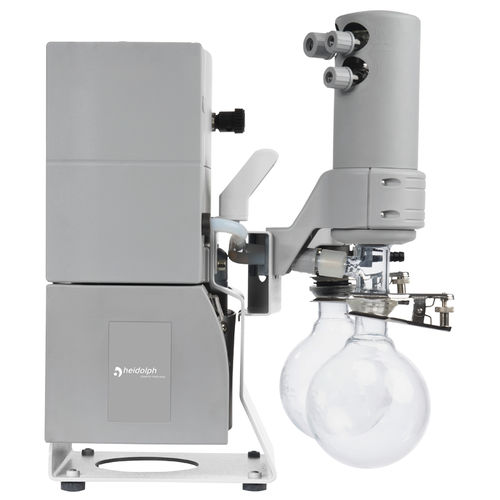

Rotary evaporator vacuum pump 591-07210-00

Includes secondary condenser and air intake separation vessel This vacuum system can be applied in many different fields in order to evacuate, evaporate and pump out gases and vapors. Thanks to the emission condenser it is possible to achieve a chemical recovery of almost 100% Excellent compatibility with chemicals and condensate Excellent ultimate vacuum of 2 mbar Very quiet and very low vibration Very high suction capacity of 3.0 m3/h Protection class (EN 60529): IP 40 Connection: Coolant: hose nozzle DN 6-8 mm Operating temperature: +10 - +40°C Motor protection: thermal cutout, manual reset Storage temperature range: -10 - +60°C Ultimate vacuum (absolute): without gas ballast: 1.5 mbar | with gas ballast: 3 mbar Maximum permissible pressure: 1.1 bar Permissible relative atmospheric moisture dur- ing operation (no condensation): 30% - 85% Maximum no-load speed: 1500 / 1800 min-1 Inlet: hose nozzle DN 8 mm Outlet: hose nozzle DN 8-10 mm Maximum permissible range of supply voltage ( ±10% ): 100-115 V~ 50/60 Hz, 120 V~ 60 Hz / 200-230 V~ 50/60 Hz
