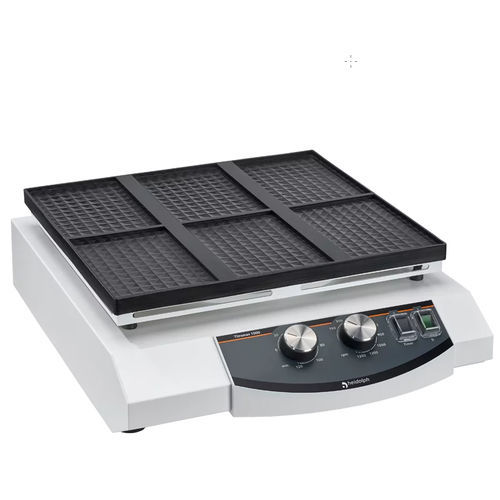

Vibrating laboratory shaker Titramax 1000

analogbenchtopvariable-speed

The largest model of the Titramax series contains all the features of the Titramax 100: a shaking orbit of 1.5 mm, speeds of up to 1,350 rpm, and a timer. With a storage capacity of up to six multi-well plates, a higher number of samples can be processed. The option to integrate the Titramax 1000 into the modular incubation system also allows temperature-controlled processes to be carried out without problems. With this model, easy loading and removal of the plates can be carried out comfortably due to the recess and the spacings in the rubber mat. Dimensions (W × H × D) 320 × 128 × 375 mm Weight 8 kg Maximum permissible load 5 kg Drive Shaded pole motor Protection class (EN 60529) IP30 Acoustic pressure < 50 dB (A) Protection class I Overvoltage category II Degree of pollution 2 Power input 25 W Operating temperature 5 °C – 31 °C up to 80 % rel. humidity | 32 °C – 40 °C up to 50 % rel. humidity (decreasing linearly) Installation altitude up to 2,000 m asl Overheat protection self-resetting Usable area 290 × 258 mm Motion circular vibrating Orbit 1.5 mm Fuse M 1,25 A (230 V) or T 2,0 A (115 V) Permissible mains voltage fluctuations ±10 %
