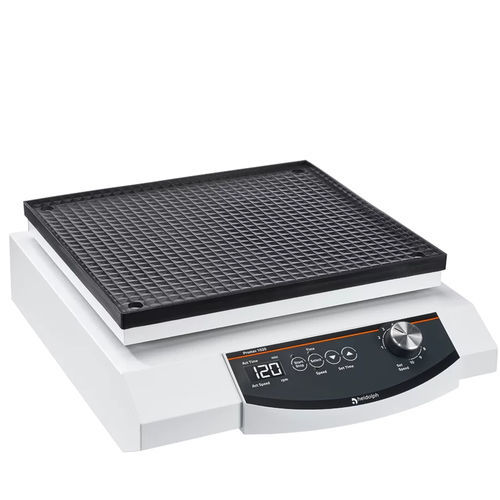

Reciprocating laboratory shaker Promax 1020

digitalbenchtopvariable-speed

The temperature-controlled model with load capacities of 5 kg The 1000 series reciprocating shaker can be easily integrated into the modular incubator system. This makes it possible to successfully run temperature controlled applications. The Promax 1020 can also be used to purify proteins at 4 °C. With a platform size of 290 x 258 mm, there is enough space for the vessels used. With a stroke of 32 mm and a speed of 30 — 250 rpm, a proper separation of the samples is guaranteed. The integrated timer function enables unattended operation so that you can concentrate on other tasks without worries. After the set time has elapsed, the acoustic signal signals the end of the shaking process. Supplemented with the appropriate holder for separatory funnels, a maximum of four pieces between 50 and 100 ml can be securely attached to the Promax 1020. Dimensions (W × H × D) 320 × 125 × 375 mm Weight approx. 8 kg Maximum permissible load 5 kg Drive EC motor Speed range 30 – 250 rpm Protection class (EN 60529) IP30 Acoustic pressure < 50 dB (A), in accordance with IEC 61010 Rated voltage 100 – 240 V, 50/60 Hz Protection class I Power input 50 W Operating temperature 5 °C – 31 °C up to 80 % rel. humidity | 32 °C – 40 °C up to 50 % rel. humidity (decreasing linearly) Installation altitude up to 2,000 m asl Usable area 290 × 258 mm Orbit 32 mm Fuse M 1,25 A (230 V) or T 2,0 A (115 V)
