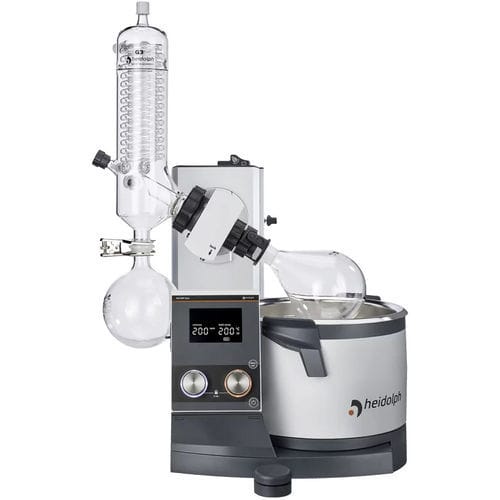

Laboratory evaporator Hei-VAP Core

rotaryvacuum

An operating concept that is focused on the essentials: clear and with access to the basic parameters rotation speed and heating bath temperature at any time. Clear digital display showing actual and set values Two separate knobs with dynamic control for setting the rotation speed and heating bath temperature: fast turning for large jumps, slow turning for precise setting of the set values Accidental changing of the values can be prevented by the lock function Intuitive LED ring light system makes activated functions clearly visible even from a distance Easy adjustment of the immersion depth up to 155 mm and the inclination angle from 20° to 80° Standby function and residual heat warning at heating bath temperatures above 50 °C Available as hand or motor lift models The standby button stops all functions and, when using a motor lift model, lifts the evaporating flask from the heating bath. Technical Data Lift - Hand lift or Motor lift Rotation speed range - 10 - 280 rpm Rotation speed indicator - 3.5" LCD Display Heating capacity - 1,300 W Overheat protection bath - cut-off at 5 °C over set temperature via separate PT 1000 Bath temperature setting - 3.5" LCD Display Heating bath temperature control - electronic / digital Max. size evaporating flask - 5 l Condensing surface - 1,400 cm² Condensing surface XL condenser - 2,200 cm²
