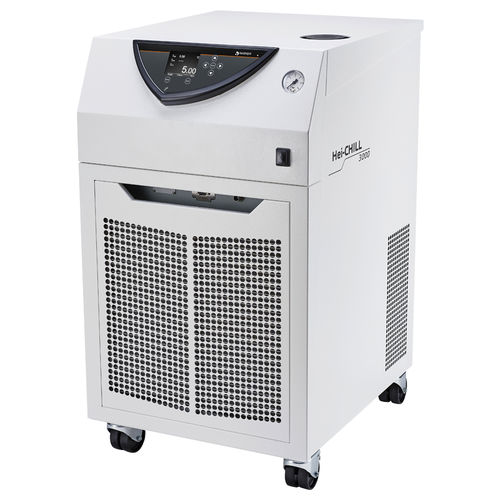

Compact laboratory chiller Hei-CHILL 3000

on castersrecirculating

Comprehensive spectrum of services for demanding temperature control tasks with a cooling capacity of 3,000 W. Filling opening at the top, drain tap at the rear Integrated programmer with 150 segments, can be divided into 5 programs Electronic level indicator and low-level alarm SmartCool system for digital, energy-saving cooling control, including automatic compressor control Clearly arranged control elements, large TFT display and membrane keypad USB interface and an alarm contact are integrated as standard features Dimensions (W × H × D): 550 x 970 x 650 Weight: 93 kg Display: 3.5” TFT display (320 x 240 pixels) Protection class (EN 60529): IP 32 Acoustic pressure: < 70 (dB(A)) (in accordance with IEC 61010) Protection class: 1 Overvoltage category: II Operating temperature: -20 to 40 °C Control accuracy: ±0.05 K Circulation pump: Max. flow rate (L at 1 bar, H2O 20°C): 20 | Max. flow pressure (bar, H2O 20°C): 2 Umwälzpumpe: I/NFL Refrigerant: R-449A Alarm output connection: max. 30 V DC, 0.2 A Contamination level: 2 Distance to surroundings all around (cm): 50 Cooling: Air-cooled Refrigerant fill weight max. (kg): 1,1 Thermal fluid fill volume (max./ min. (L): 33/20 Standard supply voltage: 1 x 230 V (50 Hz) or 1 x 208 - 220 V (60 Hz Cooling output (W): 3000 GWP(100a)*: 1397 Rated power: 230 V 1800 W | 208 - 220 V 2300 W Exhaust air m3/h: 1300 CO2 equivalent (t): 1.3
