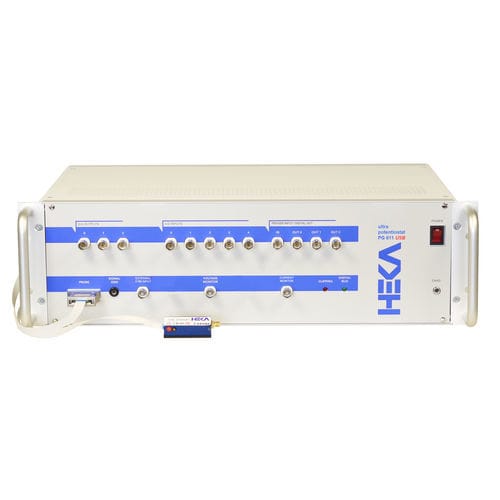

Research potentiostat PG 611

USB

Software-controlled Ultrapotentiostat/Galvanostat with built-in 16-bit data acquisition interface for low current - low noise recordings. It is equipped with a low-weight External Preamplifier offering 12 V compliance voltage, maximum current of 2 µA, and a maximum current resolution of 0.15 fA in the ±5 pA range. Ready to be connected to a PC or Macintosh computer via USB 2.0. In addition, data acquisition software POTMASTER needs to be ordered separately. 3 DA Output Channel 5 AD Input Channel 1 Trigger Input Channel 16 Digital In- and Output Channel Current Range: 5 pA to 2 µA Voltage Ranges: 1 / 5 V (500 pA to 2 µA) or 1 V (5 pA to 200 pA; High Gain Range) Bandwidth (Filter 1): 15 Hz to 100 kHz Stimulus Filter: 10 / 100 kHz Output Filter (Filter 2): 100 Hz to 10 kHz
