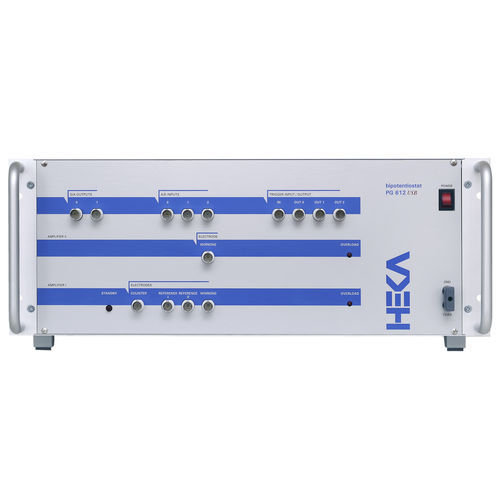

Research potentiostat PG 612USB
Add to favorites
Compare this product
Characteristics
- Applications
- for research
- Other characteristics
- USB
Description
The PG 612 USB is a bipotentiostat/bigalvanostat that features two amplifier boards of the PG 610 USB. Both amplifier boards have a compliance voltage of ±12 V and a working current range from 20 nA up to 100 mA. In the PG 612 USB both working electrodes can be controlled independently from each other. Further, having two working electrodes available allows to investigate redox chemistry in a ring-disc configuration.
Bipotentiostat/Galvanostat (Two Amplifier Boards)
Current Range: 20 nA to 100 mA
Voltage Ranges: 0.02 / 0.2 / 2 / 10 V
Bandwidth: 30 Hz to 300 kHz
Stimulus Filter: 20 Hz to 200 kHz, Bypass
Output Filter: 20 Hz to 200 kHz
