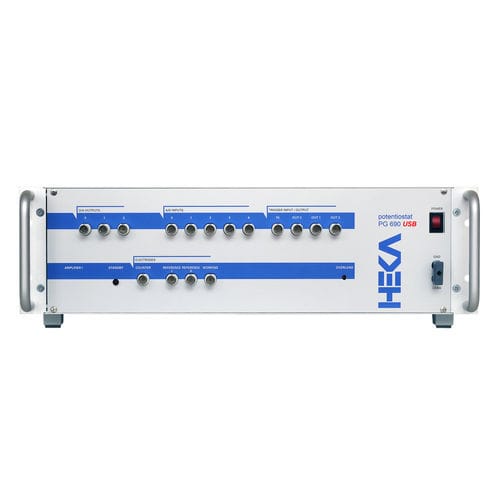

Research potentiostat PG 690

USB

Software-controlled single channel Potentiostat/Galvanostat with built-in 16-bit data acquisition interface. It has a Compliance Voltage of 90 V and 10 available current ranges (100 mA - 20 nA, max current resolution 0.61 pA), supporting typical electrochemical cell configurations in 3/4-electrode mode. Ready to be connected to a PC or Macintosh computer via USB 2.0. In addition, data acquisition software POTMASTER needs to be ordered separately. Voltage Range: ±90 V Compliance / ±10 V Scan Potential Current Ranges: ±20 nA to ±100 mA (10 ranges available) Max. Current Resolution: 0.61 pA in 20 nA range Potential Resolution (applied and measured): 610 nV DA / AD Resolution: 16-bit at 200 kHz, 5 µs shortest sample interval Working Mode: Open Circuit Potential, Potentiostatic and Galvanostatic (each available in 2/3/4-Electrode Mode) Input Impedance (Reference Electrode): > 100 GΩ // 1.5 pF DA / AD Convertors: Analog Output Channels: Cell Voltage & Cell Current and 3 free D/A Outputs Analog Input Channels: 5 free A/D Inputs Digital I/O: 16 Digital In- and Output Channels are provided on a 40-pin connector on rear panel Trigger In: 1 of the Digital Inputs (provided via BNC on the front panel) as Trigger Input Trigger Out: 3 of the Digital Outputs (provided via BNC on the front panel) as Trigger Output Master / Slave Sync: CAT5 connectors for synchronization of a second data acquisition interface system
