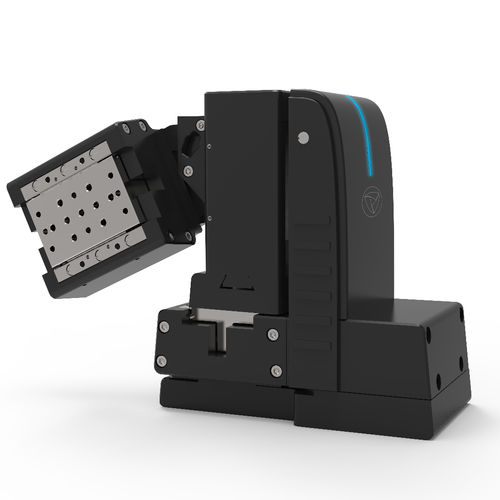

Three-axis micromanipulator Sensapex µM

The µM micromanipulator is the latest from Sensapex. It comes with 3 axis, a fourth axis is available upon request. As well the SMX micromanipultor it is has a very small foot-print and therefore is the best option for a clean setup or a setup with multiple manipulators on one stage. All Sensapex manipulators have Zero drift solid-state technology. Due to low moving mass of the manipulator it does not create vibrations one other manipulators mounted to the stage. Compact plug-and-play systems with unlimited scalability Zero drift solid-state drives with integrated closed-loop control 20 mm range with 5 nm resolution and 20 nm repeatability Virtual and physical 4th axis options Easy to use electrode exchange mechanisms Millisecond level synchrony for automated positioning Load 0-150 g All head stages of the EPC 10 USB and EPC 800 USB can be mounted on it. The system can be extended with as many manipulators as you want, only limited by the space on your stage.
