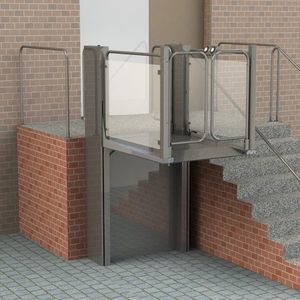

Wheelchair lifting platform MB750

floor-mounted

With the lifts of the MB750-Series you could easily guarantee problem-free access even with small space. Thanks to its space orientated construction the lift can be deployed flexible. The high-grade stainless steel construction sustains wind and weather and is heat-, frost and rainrestistant. Indoors or outdoors: The MB750 guarantees reliable operaility. The lift could be controlled with a hand control unit, a handy radio control or alternatively also comfortable with the smartphone app. The MB750 sets new standards. 690*/750 mm max. lifting height (*when build into pit) Loading capacity 350 kg 60 mm clearance height with ramp or ground level installation Speed approx. 12.5 mm/s Passage width 720 mm Lift width 1010 mm Lift length 1330 mm Straight access Automatic ramp also protects against rolling off CE-conform according to machinery directive 2006/42/EG Waterproof sensor buttons with vandalism protection class IK08 and key lock Radio and Bluetooth control possible Required electrical connection 230V (regular plug) Temperatures from -25°C to +40°C Standard control with wired handheld control unit TECHNICAL DETAILS Loading capacity 350 kg Even heavy electrical wheelchairs can be lifted without strain Usable platform 720 x 1330 mm Wheelchair accessible platform size with enough free space Lifting height up to 690 mm Without being built into a pit even up to 750 mm OPTIONS Sensor buttons High protection against vandalism and a big plus for the comfort while driving Controllable via smartphone app For your Android and iOS device Absolute safety Ramp also works as roll-off protection
