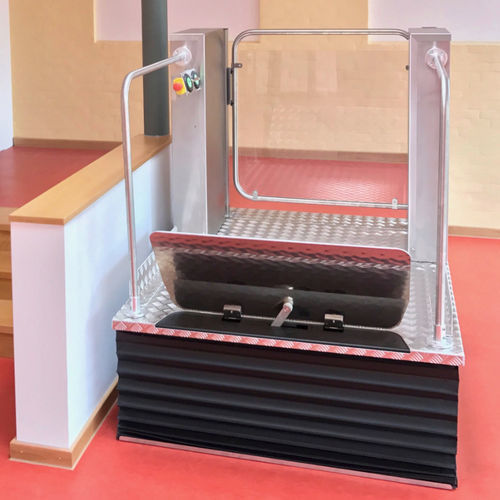

Wheelchair lifting platform MB850

floor-mounted

Our small platform lift MB850 is especially designed with an open and light design, so it could be installed as low-key as possible THE ALL-ROUNDER ON SMALLEST SPACE With both lifts MB850 Micro and MB850 Duo you have uncountable options for access in buildings on the smallest space. Thanks to its space orientated construction it is possible to drive in straight or adjacent. The high-quality stainless steel construction sustains wind and weather and is heat-, frost and rainrestistant. Indoor or outdoor, the MB850 series guarantees reliable operability. The lift could be controlled with the hand held control, the handy radio control or alternatively comfortable with the app. The lift was deliberately designed so that standing persons could also drive comfortable. By request a door could be build on the upper station for even more safety. MB850 MICRO 850*/910 mm max. lifting height (*when build into pit) Loading capacity 300 kg 60 mm clearance height with ramp or ground level installation Speed approx. 20 mm/s Passage width 750 mm Lift width 1100 mm Lift length 1430 mm Straight or adjacent access Automatic ramp also protects against rolling off CE-conform according to machinery directive 2006/42/EG Waterproof sensor buttons with vandalism protection class IK08 and key lock Radio and Bluetooth control possible Required electrical connection 230V (regular plug) Temperatures from -25°C to +40°C Standard control with wired handheld control unit MB850 DUO 850*/910 mm max. lifting height (*when build into pit) Loading capacity 300 kg 60 mm clearance height with ramp or ground level installation Speed approx. 20 mm/s Passage width 900 mm Lift width 1250 mm Lift length 1430 mm
