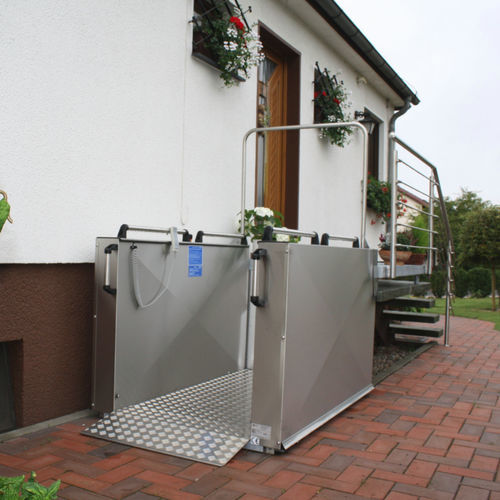

Wheelchair lifting platform MB1000

floor-mounted

The lift MB1000/1300 solves problems fast and efficient. With those lifts no physical provision is needed. Everything it takes is an even surface. Wether on exhibitions, events or on-stage appearances – the lift is delivered, put down and connected to the normal 230V power supply, yet it is ready for use. The lifts have a vast weather resistance and are made of high quality material, which porvides that the lift stays extremly long-living and sturdy. The lift was deliberately designed so that standing persons could also drive comfortable. By request a door could be build on the upper station and an automatic barrier on the lower one – for even more safety. MB1000 945*/1000 mm max. lifting height (*when build into pit) Loading capacity 300 kg 55 mm clearance height with ramp or ground level installation Speed approx. 15 mm/s Passage width 830 mm Lift width 1190 mm Lift length 1650 mm Straight access Automatic ramp also protects against rolling off CE-conform according to machinery directive 2006/42/EG Waterproof sensor buttons with vandalism protection class IK08 and key lock Radio and Bluetooth control possible Required electrical connection 230V (regular plug) Temperatures from -25°C to +40°C Standard control with wired handheld control unit MB1300 1210*/1280 mm max. lifting height (*when build into pit) Loading capacity 200 kg 70 mm clearance height with ramp or ground level installation Speed approx. 15 mm/s Passage width 900 mm Lift width 1310 mm Lift length 2000 mm Straight access Automatic ramp also protects against rolling off CE-conform according to machinery directive 2006/42/EG Waterproof sensor buttons with vandalism protection class IK08 and key lock
