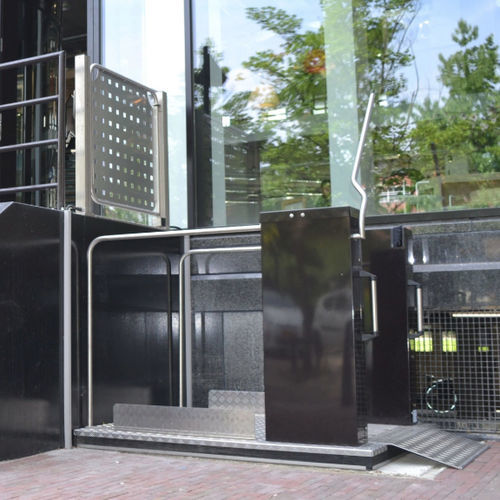

Wheelchair lifting platform MB1100

floor-mounted

The maximum lifting heights of the MB1100, MB1400 and MB1700 overcome up to nine or more steps in or outside the house. Thanks to their flat designed systems, the three versions with different lifting heights could be placed directly on the level ground, if required also surface leveled. The high-quality stainless steel construction sustains wind and weather and is heat-, frost and rain resistant. The lift could be controlled with the hand held control, the handy radio control or alternatively comfortable with the app. The lift was deliberately designed so that standing persons could also drive comfortable. By request a door could be build on the upper station and an automatic barrier on the lower one – for even more safety. MB1100 1100*/1160 mm max. lifting height (*when build into pit) Loading capacity 300 kg 60 mm clearance height with ramp or ground level installation Speed approx. 20 mm/s Passage width 900 mm Lift width 1280 mm Lift length 1630 mm Straight or adjacent access Automatic ramp also protects against rolling off CE-conform according to machinery directive 2006/42/EG Waterproof sensor buttons with vandalism protection class IK08 and key lock Radio and Bluetooth control possible Required electrical connection 230V (regular plug) Temperatures from -25°C to +40°C Standard control with wired handheld control unit MB1400 1400*/1490 mm max. lifting height (*when build into pit) Loading capacity 300 kg 90 mm clearance height with ramp or ground level installation Speed approx. 20 mm/s Passage width 900 mm Lift width 1280 mm Lift length 1630 mm MB1700 1400*/1490 mm max. lifting height (*when build into pit) Loading capacity 300 kg
