Mortuary trolley 8CL311-2000B
for casketsliftingtransport

mortuary trolley
mortuary trolley
mortuary trolley
mortuary trolley
mortuary trolley
Add to favorites
Compare this product


Characteristics

Applications
mortuary
Use
for caskets
Function
lifting, transport, loading, unloading
Material
stainless steel
Operation
electro-hydraulic
Other characteristics
height-adjustable, extendable

Description

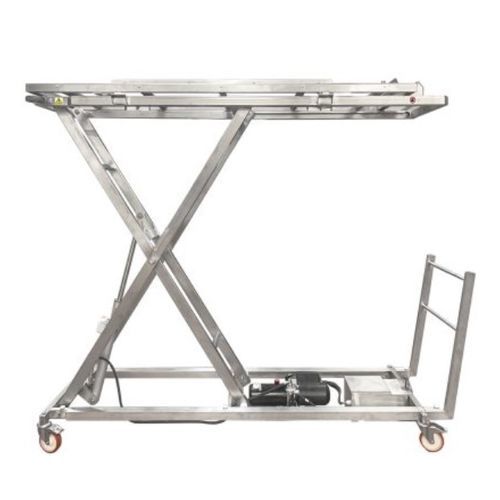

The cadaver lift eletrically operated with scale-H200cm is manufactured in stainless steel AISI 304 and it is designed in order to facilitate vertical loading and unloading within a morgue. Height adjustment is provided by an integrated hydraulic unit (electrically operated with a 12 volt battery that ensures constant power supply) using the two pedals located at the base of the control panel. An indicator in the centre of the panel indicates the battery charge status. To accommodate the tray, the roller track position on the top of the lift, comprises of 5 rollers of 60 cm in galvanized steel. The unit is supplied with a separate 4 steerable solid wheels (two of which are lockable), diameter 12.5 cm with special roller bearings, permanently lubricated and maintenance-free, which ensure absolutely noiseless movement. The slide handle can be removed. The tray locking ensures a secure fastening of the tray. Two lateral wheels protect the lift from collisions. A scale with digital display is integrated in the trolley for weighing the loaded body. Safety devices: a choke valve allows the trolley to come down slowly. Tray not included. STANDARD FEATURES • dimensions lowest position W/D/H: 252 cm x 75 cm x 35 cm h • dimensions highest position W/D/H: 252 cm x 75 cm x 200 cm h • carrying capacity: 250 kg max • weight of the trolley: approx. 150 kg • material: stainless steel AISI 304, satin finish
