Histopathology laboratory workstation 4FW22

compactwith backdraft ventilation

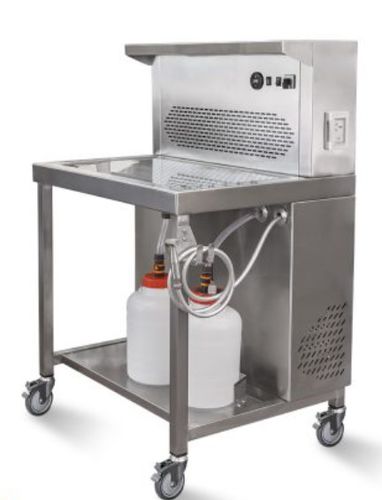

The 4FW22 Grossing Station Freestanding 90cm with self exhaust ventilation is compact and versatile workstation, fully in Stainless Steel AISI 304. Despite its size this station provides a large working area ideal for trimming, small surgical procedures and staining. However it can also be used in larger structures as an additional work surface. If you don’t have enough space you can opt for the countertop model, 4CW2. The upper part of the grossing station contains a ventilation duct for the expulsion of air. The design has been developed to guarantee optimal elimination of odor from the worktop. The 4FW22 Grossing Station freestanding 90cm mounts the self exhaust ventilation system. The fumes are directed to the upper hood through the ventilation duct at the rear of the station. The air is filtered through filters in activated alumina granules, soaked in potassium permanganate. The air intake is guaranteed by a centrifugal electric fan equipped with a potentiometer to adjust ventilation. Filtered air is expelled through a perforated grid placed at the back of the grossing station. From the front panel you can easily change the two potassium permanganate filters. We produce a version with the In house ventilation system, discover the 4FW21. Also available the portable version, with wheels. Contact us for more info. Discover all our models of Grossing Station non elevating, click here! CHARACTERISTICS Fully made of AISI 304 Stainless Steel (on request 316) Dimensions: 91 cm L x 55 cm D x 135 cm H STANDARD FEATURES Perforated Grid Plate Circuit Braker switch Led light on/off switch USB power outlet Back ventilation Grid Hand Spray Rinse
