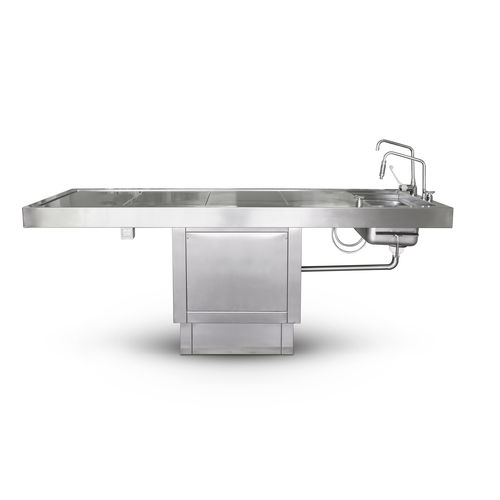

Forensic autopsy table 6ATP19

for histopathology laboratoriesdissectionmortuary washing

The design of our tables has been studied to guarantee a tailor-made experience, in order to adapt to customer requests. The 6ATP19 (Autopsy Table Ventilated and Elevating) consists of a top entirely in stainless-steel AISI 304 and a central pedestal which, in addition to supporting the top, contains the ducts of the ventilation system, in order to extract toxic fumes during processing. Discover our entire range of elevated and ventilated autopsy tables, click here. Dimensions: 250 cm x 80 cm x 80/100 cm h ELEVATION In the lowest position, the top is at a height of 80 cm. The height of the top can be adjusted in a range of 20 cm, reaching a maximum height of 102 cm. Two electromechanical actuators ensure elevation, with millimetric adjustment (degree of protection against liquids and dust IPX6). VENTILATION While using the autopsy table, the operator is subject to the exhalation of formalin fumes or other harmful substances. The DOWN-DRAFT system has been designed to ensure the extraction of fumes of the entire work surface. Through the grilled panels, the fumes are directed into the intake duct located inside the central pedestal. STANDARD FEATURES Removable grids with 7mm hole Main switch with socket, with IP55 protection Hand shower with flexible hose (150cm) for controlled rinsing of the work surface. Hydro-aspirator with lever (allows reverse flow for cleaning liquids on the work surface). Single lever mixer (flow rate at a pressure of 3 BAR: 22l /min). Sink basin 34x40x25h cm with 9,5 cm drain hole.
