Mortuary trolley 8CL311-1700N
coffinliftingtransport

mortuary trolley
mortuary trolley
mortuary trolley
mortuary trolley
mortuary trolley
mortuary trolley
Add to favorites
Compare this product


Characteristics

Applications
mortuary
Use
coffin
Function
lifting, transport, handling
Material
stainless steel
Operation
hydraulic

Description

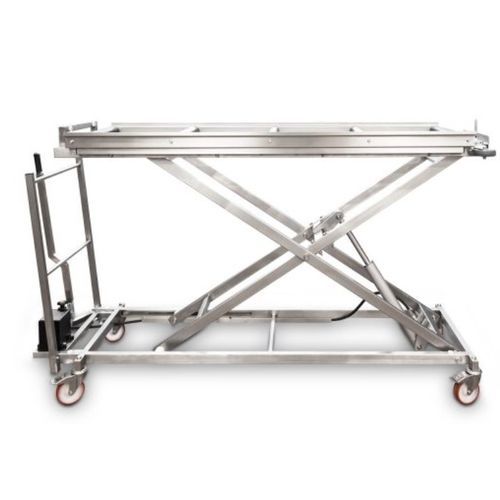

The manually operated cadaver lift -H170cm is made entirely of tubular AISI 304 stainless-steel and has a sturdy, torsion-resistant frame structure, with a hand lever for vertical adjustment that allows for easy handling. The unit features 4 separate steering , solid wheels in rubber (two of which are lockable) ø 12.5 cm with special roller bearings, permanently lubricated and maintenance free, which guarantee completely silent movements. The low deadweight allows for easy manoeuvring and operation of the cadaver lift. To accommodate the tray, the roller track position on the top of the lift comprises of 5 rollers of 60 cm in galvanised steel, covered in black plastic. A sealing device secures the body tray or coffin plate resting on it. 2 anti-collision wheels are mounted on the front end. A valve situated close the actuators ensures adjustments at different loads. Safety Devices: a throttle valve allows the slow descent of the trolley. The tray is not included. SPECIFICATIONS lowest position: 34 cm h highest position: 170 cm h load capacity: max. 200 kg weight of the trolley: approx. 130 kg
