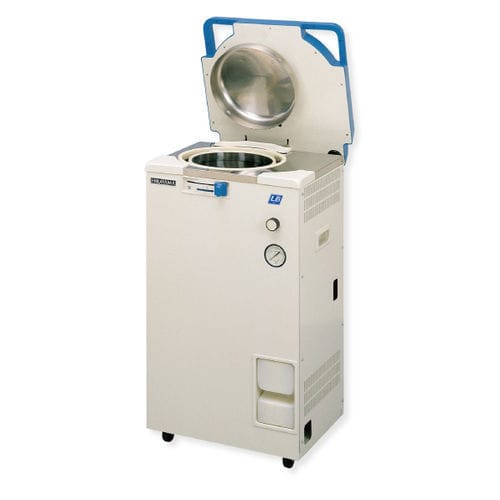

Medical autoclave HVE-50
verticalautomaticprogrammable

Medical autoclave - HVE-50 - HIRAYAMA - vertical / automatic / programmable
Medical autoclave - HVE-50 - HIRAYAMA - vertical / automatic / programmable
Medical autoclave - HVE-50 - HIRAYAMA - vertical / automatic / programmable - image - 2
Medical autoclave - HVE-50 - HIRAYAMA - vertical / automatic / programmable - image - 3
Add to favorites
Compare this product


Characteristics

Applications
medical
Configuration
vertical
Function
automatic, programmable
Capacity

50 l
(13.21 gal)

Temperature range

Max.: 135 °C
(275 °F)

Min.: 105 °C
(221 °F)

Sterilization cycle time

Max.: 250 min

Min.: 1 min

Width

547 mm
(22 in)

Height

1,046 mm
(41.2 in)

Depth

532 mm
(21 in)

Description

Electro-mechanical lid lock system Dual interlock mechanism Features & Functions Electro-mechanical lid lock system The lid can be opened and closed easily and reliably with the one-touch lever. A pressure seal method is used as a safety measure. Dual interlock mechanism The lid is locked by dually detecting the chamber pressure and chamber temperature during operation. The lock state is maintained even if an operation is manually interrupted. Pulse exhaust function Fine exhaust is performed by automatically adjusting the instantaneous exhaust intervals according to the chamber pressure. Memory function Set contents can be registered for each mode. Warming function that does not coagulate the agar media. After sterilization, the agar media is kept warm to prevent it from coagulating. Operation cycle of each mode Main applications: Sterilization of agar medium (It is warmed at constant temperature to prevent clotting after sterilization.) Main applications: Sterilization of liquid, which can withstand high temperature and high pressure steam such as water, culture medium, reagent, reagent solution, liquid medicine, etc. and sterilization of waste using a sterilization bag. Main applications: Sterilization of instruments made of glass, ceramic, metal or rubber that can withstand high temperature, high pressure steam and rapid pressure reduction during exhaust. Sterilization tape, Sterilization label, Sterilization bag ■Sterilization tape: Clear color change makes it easy to identify exposure to sterilization process. ■Sterilization label: Paste directly on the object to be sterilized, you can check the sterilization treatment.
