Optical microscope SH-5500P

X-raySEMlaboratory

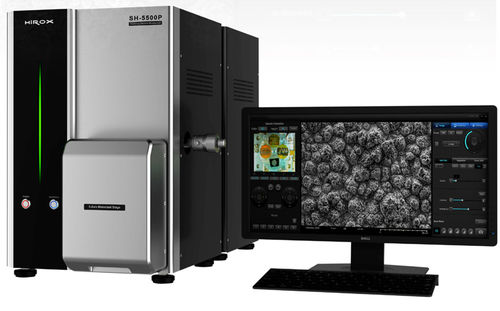

This electron microscope is the frist premium table top SEM to combine a 5 axis fully motorized stage and a large chamber which allows to fit large samples. The high votage is adjustable from 1 to 30 kV (6 steps). – Window 10 compatible – 5 axis fully motorized – Tilt from -45 to +90 degrees allows a perfect observation of the sample. – Allows 3D reconstruction with paired SE stereo images or from 4 BSE images – 70 deg tilt for EBSD available (option) – Maximum sample size : diameter 80mm, thichkness 40mm Easy to use graphic interface CCD camera with stage navigator A CCD camera attached to the SEM allows to capture an image of the sample holder with the samples. The image is automatically loaded in the SEM software. To move over the sample just click on the picture, the stage will move. Standard specifications Up to 5120*3560 pixel image Beam resolution 5nm (SE) 4 variable apertures and continuous variable spot size High Vac and Low Vac modes SE and BSE detector Dual mode 1 to 30 kV (6 steps 5kV) Automatic adjustments Stage navigator 5 axis 2 modes: High vacuum and Low vacuum 2 electrons detectors: SE and BSE (4 diodes) Integrated EDS from BRUKER Nano The SH-5500P is ready for EDS (ESPRIT 2.1 by BRUKER) and also EBSD analysis both together. Two models EDS are available: QUANTAX 100 Integrated silicon drift détector (SDD) nitrogen free Detection from Boron to Uranium, 129ev Resolution 10 & 30 mm² Qualitative and Quantitative analysis sofware QUANTAX 100 Advanced Multipoints and area spectrum acquisition Line profile X-ray mapping and spectral imaging Versatile chamber for special tools Optional features
