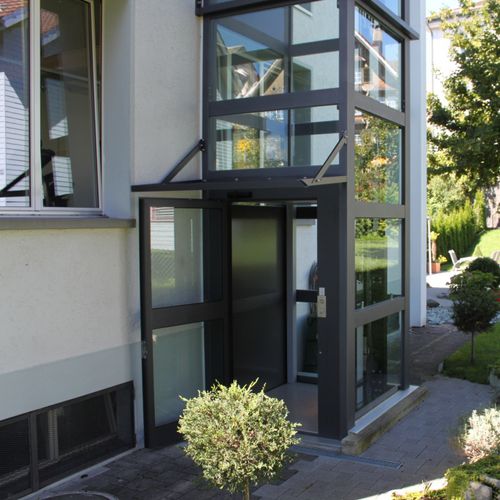

Private elevator E50

Depending on site conditions, can be supplied either for a masonry shaft in a building or with a self-supporting lift shaft, With no lift pit (15 cm) No headroom requirement (ceiling height is sufficient), This special lift can be incorporated into an existing building. The platform moves in a closed shaft With a smooth movement and jolt-free starts and stops. Extremely space-saving due to its small foot-print Additional comfort from the hydraulic drive and almost noise-free operation Technical data - Maximum number of doors: 6 Accesses: possible in 3 sides Maximum working load: 300 – 500 kg (depending on size) Maximum lift: 19 m Stops: up to 6 stops possible Power supply:230V / 16A Cabin size: maximum 2m2, minimum 560 x 600 mm
