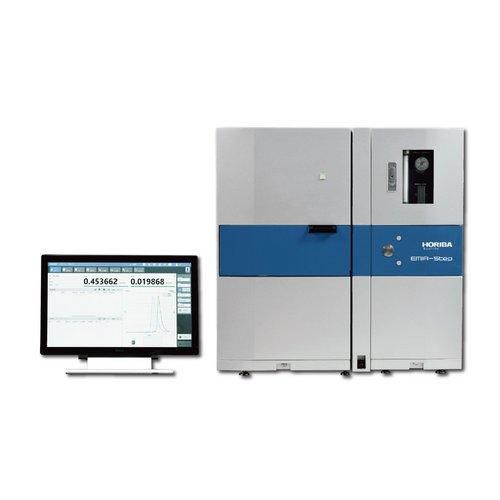

Control analyzer EMIA-Step

temperaturepressurecarbon

The EMIA-Step Carbon/Sulfur Analyzer, which uses a tubular electric resistance heating furnace, offers highly accurate and sensitive analysis. Its variable heating temperature (up to 1450°C) function allows for quantitative analysis by separating it by temperature or humidity as well as whole quantity analysis. * For samples which is difficult to burn (e.g. ceramics, Ti alloys, etc), we also offer the EMIA-Pro (Entry model) and EMIA-Expert (Flagship High-Accuracy Model). Greater Accuracy Proven NDIR Gas Detection Technology The EMIA-Step Carbon/Sulfur Analyzer uses the infrared method to measure Carbon and Sulfur after combustion in an electric resistance furnace. With HORIBA's renowned Non-Dispersive Infrared (NDIR) measurement capabilities, it can detect carbon ranging from 0.0003 to 6.0% (m/m) and sulfur ranging from 0.0004 to 1.0% (m/m). The analyzer is also equipped with a unique CO detector and can be used for a wide range of inorganic materials, including steel, cokes, catalysts, non-ferrous alloys like aluminum, and lithium-ion battery materials. Temperature Control Function The combustion furnace of the analyzer utilizes a distinctive sealed system, which facilitates efficient combustion of flame-retardant samples through high-pressure oxygenation. The system offers excellent temperature stability, ensuring consistent performance across low and high temperatures. This broadens the range of applications to samples containing substances that are easily decomposed and burned at low temperatures. The decomposition combustion of organic and inorganic matter can be easily observed.
