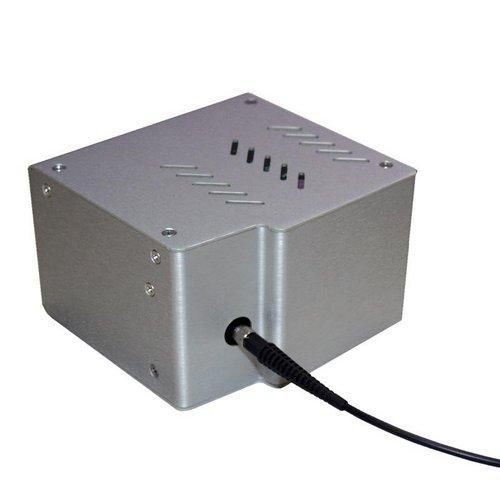

VS70 is a high performance compact fiber coupled spectrometer system covering wide spectral range of 200 to 1050 nm. This OEM optical module is built around Horiba’s
type-IV Aberration-Corrected Flat-Field Holographic Ion-Etched concave grating and is specially designed to easily adapt to a large variety of detectors and electronic drivers. This system is fitted with a custom variable order-sorting filter to eliminate higher orders.
The proprietary layout of the VS70 features a single-optics design for superior imaging, peak symmetry and resolution, sensitivity and low-stray light performance, for low-light applications (fluorescence, emission) and high-dynamic applications (absorbance, reflectance).
For OEM Industrial Applications
Ideal for industrial low-light applications such as fluorescence, emission, absorbance, and reflectance.
Examples:
Semiconductor plasma monitoring
Colorimetry
Blood and urine analysis
Liquid chromatography
Food moisture content analysis
Flow cytometry
High spectral resolution and system throughput
Compact size robustness and stability
High Spectral Rate (HSR)
High Dynamic Range (HDR)
Wide spectral covrage from UV to NIR combined with ultra low stray light
High linearity (raw and linearity-correction
Highly customizable for various applications
General Spectrometer Specifications*
Average Spectral
Dispersion - 30.9 nm/mm for 365 l/mm grating, 23.7 nm/mm for 477 l/mm grating
16.3 nm/mm for 582 l/mm grating
Focal Length 70 mm
Options - Selection of high grade sensors: CMOS, B.I. CCD, PDA
Input port: SMA, FC, free space, custom input
F/# F/2.8
