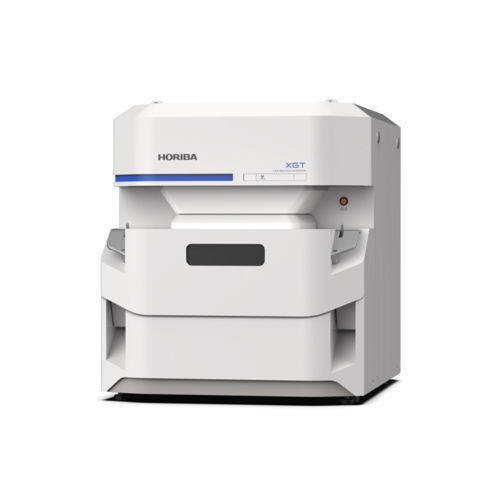

Optical microscope XGT-9000 series

X-raylaboratoryfor the pharmaceutical industry

Next evolution of micro-X-ray fluorescence spectroscopy ultimate performance in speed and flexibility High sensitivity & wide detectable element range Dual types of detectors for fluorescent X-rays and transmission X-rays ≥15 µm spot size with an ultra-high intensity capillary High-resolution cameras and multiple illumination modes Flexible & user-friendly software interface FEATURES Higher sensitivity and wider detection range by new detection systems With new advanced detection systems, the XGT-9000 Pro is able to achieve higher sensitivity than before and the XGT-9000 Expert provides you the ultimate performance in sensitivity and the widest detectable element range. Having improved sensitivity reduces measurement time and boost your work efficiency while wider detectable element range expands your application possibilities. High quality macro and micro imaging with multiple probe selection The XGT-9000 Series provides ultimate performance and flexibility with its well designed excitation system, including high output X-ray generator (up to 50 kV and 1000 µA) and a wide selection of probe spot sizes down to 10 microns and up to 1.2 mm. Multi-probes can be installed in the instrument and switchable on the software. It allows high quality fast imaging in macro and micro level without compromising the needs of spatial resolution and measurement time over large map area. Two ultra high intensity probes of 15 µm and 100 µm can be chosen. Dual types of detectors for fluorescent X-rays and transmission X-rays The XGT-9000 Series provides dual types of detectors. One is a fluorescent X-ray detector which tells the elemental distribution of a sample,
