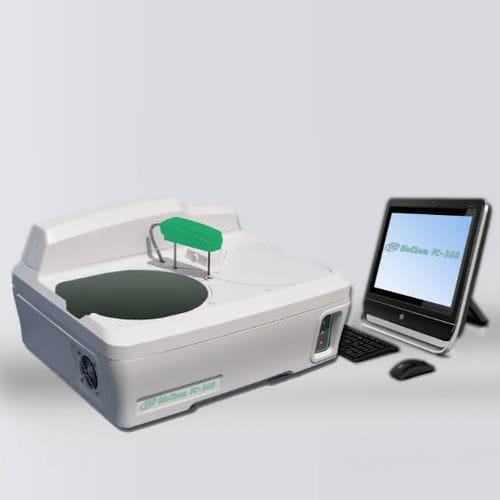

Fully automated, random access chemistry system with STAT capability. Best for medium to high volume sample laboratories.
Reagent/Sample Handling
Reagent/Sample Probe: Liquid Level Detection, Collision protection, Mixing, Reagent Volume Check, Sample/Reagent Pre-Heating 37°C
Probe Cleaning: Interior and exterior automatic probe washing, Carry-Over <1%
Reaction System
Reaction Rotor: Rotating tray, 100 PMMA cuvettes (10 Segments), automatic washing
Light Source: Krypton-Halogen Lamp 12V 20W
Wavelength: 340, 380, 405, 505, 546, 578, 600, 650 and 700, 1 additional Wavelength can be added
Absorption Rate: -0.100 ~ 3.600Abs, (10mm Conversion)
Resolution: 0.01
ISE Mode (optional)
Electrodes: Na, K, Cl, Li, Reference
External Computer
Operating System: Windows XP or Newer
Interface: RS-232, RS-232 to USB
Software
LIS: Bi-Directional
Languages: English, Spanish, Portuguese, French, Russian, Chinese
Data Storage: Unlimited, Database Initialization every 10,000
Printing: Available on any Windows compatible printer
Statistics: Test, Quality Control and Calibration Counter, Reagent Consumption
Re-Run: Manual Sample
Dilution: Automatic Sample Dilution
Barcode Reader: Sample (optional)
Working Condition
Power Supply: 100 ~ 240VAC, 50/60Hz, 400VA
Temperature: 20 ~ 25°C
Humidity: 35 ~ 85%
Water Consumption: 2.4ml/cuvette, <1 Liter/Hour
