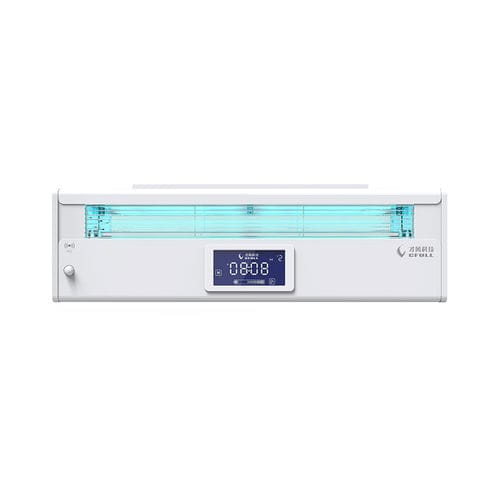

Upper level flat jet UV sterilizer
This machine is equipped with UV lamps and a concentrated flat shot device. and it is installed on the upper end of the wall (above 2.1m in height), forming a flat shot layer in the upper part of the room, using the natural convection of indoor air without circulating wind to kill the floating and diffuse viruses and bacteria in the air.
The air can be quickly disinfected when the fan is turned on, Even if the fan is turned off, it also can be disinfected through the natural up and down convection in the air.
Model :CF/BVU1000(Upper Level Flat Jet UV Disinfector)
Air volume :1000m³/h
UV lamp radiation intensity :280uw/cm2
UV lamp radiation life :10000h
UV lamp specifications :793mm、Φ15
UV lamp number :1
Sterilization rate :99% Mycobacterium turtles
Function :<110W
Adapt power supply :AC220V50HZ
Advantages
1. Internal mirror reflection plus optical lens to achieve the true upper level of ultraviolet light flat shot
2. Using imported high-energy ozone-free ultraviolet light 1 meter energy up to 200UW or more
3. Original ozone filter decomposition technology to achieve no ozone leakage
4. Timing start and stop, intelligent detection, personnel height of more than 2.1 meters automatically shut down the upper UV flat shot
5.2.1 meters below without any UV light,Human-machine coexistence
Application
1. Especially suitable for disinfection of highly infectious wards such as tuberculosis
2. Outpatient rooms of pediatrics, fever, infectious diseases, etc., and disinfection of spaces with large population mobility
3. Schools, childcare institutions, etc.
4. Densely populated and public areas with high mobility
