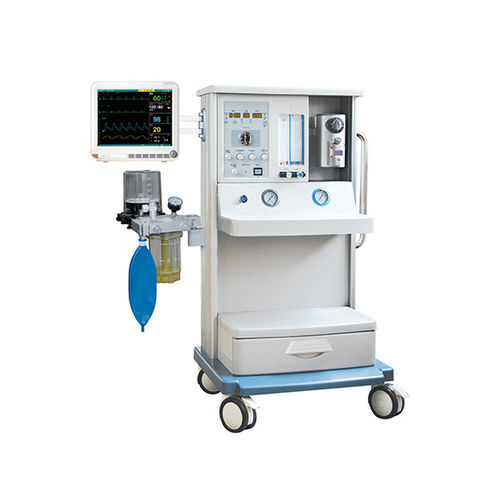

Anesthesia ventilator JINLING-01manualSIMVon casters
Add to favorites
Compare this product
Characteristics
- Applications
- anesthesia
- Type
- manual
- Ventilation mode
- SIMV
- Configuration
- on casters
- Tidal volume
Max.: 2,000 ml
(67.6 US fl oz)Min.: 0 ml
(0 US fl oz)
Description
● Display: LED display
● Flowmeter Range: O2: 0.1~10L/min; N2O: 0.1~10L/min
● Back~up Power Supply: At least 4 hours
● Respiratory Rate: 1~99bpm
● Oxygen Supply Flow Rate: 25~75L/min
● Inspiratory/Expiratory (I: E) Ratio: 4:1~1:10
● Inspiratory Pressure Trigger: ~10~10cmH2O (electronically controlled)
● SIGH: 1 sigh breath in every 80~160 breaths
● Vaporizer Concentration Ranges: 0~5%
● Single Vaporizer: Enflurane, Isoflurane or Sevoflurane (Halothane optional).
● Gas Supply Pressure: O2: 0.32MPa~0.6MPa; N2O: 0.32MPa~0.6MPa
● Option: Patient Monitor
size:Main Unit CTN 83*77*123CM;
AccessoyCTN 66*62*35CM;
GW:91kg
NW:76kg
