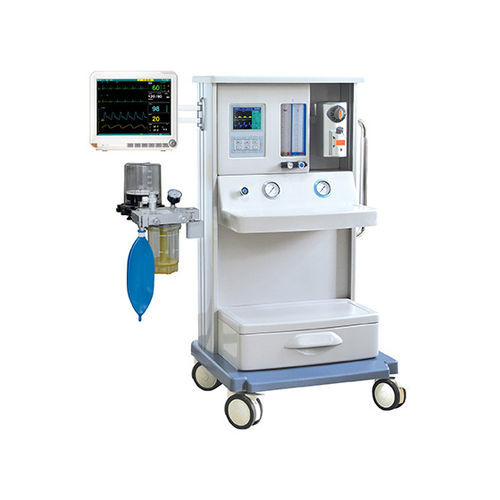

Anesthesia ventilator JINLING 820manualSIMVon casters
Add to favorites
Compare this product
Characteristics
- Applications
- anesthesia
- Type
- manual
- Ventilation mode
- SIMV
- Configuration
- on casters
- Tidal volume
Min.: 0 ml
(0 US fl oz)Max.: 2,000 ml
(67.6 US fl oz)
Description
● Display: 5.7 inch TFT display
● Flowmeter Range: O2: 0.1~10L/min; N2O: 0.1~10L/min
● Back~up Power Supply: At least 4 hours
● Respiratory Rate: 1~100bpm
● Inspiratory/Expiratory (I: E) Ratio: 8: 1~1: 10
● PEEP Range: 0~20cmH2O (electronically controlled)
● Inspiratory Pressure Trigger Range: ~10~10cmH2O (electronically controlled)
● SIGH: 1 sigh breath in every 80~120 breaths
● SIMV Rate: 1~20bpm
● Inspiratory Plateau: 0~1 second
● Vaporizer Concentration Ranges: 0~5%
● Single Vaporizer: Enflurane, Isoflurane or Sevoflurane (Halothane optional).
● Option: Patient Monitor
