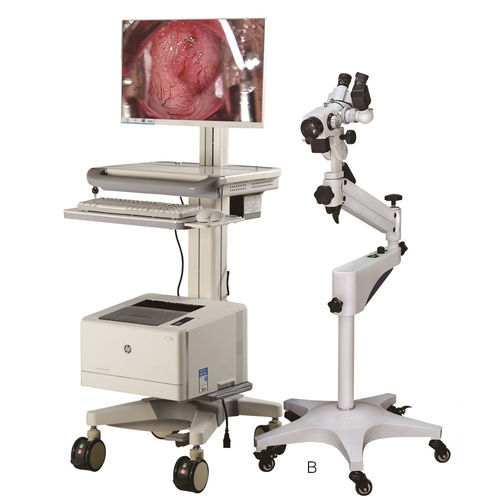

FD-9200C Optical Colposcope
1. Technical parameters and requirements:
1.1 The focal length of the objective lens: F'=300mm
1.2 Objective lens magnification: 0.4X-2.75X continuous zoom
1.3 Total magnification: 2.7 times to 16.6 times
1.4 Zoom ratio: 1:6.8 stepless zoom
1.5 Field of view: 11mm-90mm
1.6 Focusing range: 20mm
1.7 Working distance: 250mm-300mm
1.8 Observation mirror tilt angle: 45°
1.9 *Eyepiece magnification: 10x
1.10 Zero-sight indication error: ±0.25
1.11 Minimum adjustment range of diopter: between +5 and -5
1.12 Interpupillary distance adjustment range: 55mm to 75mm
1.13 Noise: the noise of the microscope should not be greater than 60dB
1.1.14 The magnification difference between the left and right optical systems: ≤1.5%
1.1.15* The image tilt difference between the left and right fields of view: ≤2°
2. Camera system:
2.1. Camera function: The camera has a white balance function
2.2. Synchronous output: the monitor and the mirror image are displayed
synchronously
2.3. Effective pixels: HD high-definition movement, effective pixels 12 million
(pixels can reach above 1080P CCD camera, to ensure the high definition of the
digital electronic imaging system, to ensure 100% real-time display of the mirror
image. Microcomputer control automatic white balance, Color saturation, etc.,
1920*1080 resolution acquisition mode;
2.4. Image capture system: Image output mode: SDI/HDMI video capture, frame rate
25 or 30 per second
