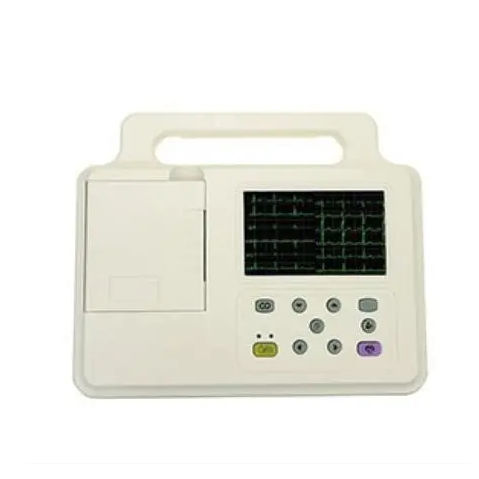

Resting electrocardiograph ECG8201

12-channeldigitalwith printer

Full screen display of 12 channel ECG waveforms Digital single channel automatic measurement, analysis and diagnosis with report printing Multiple operation modes: manual, automatic, rhythm, physical examination No need to install. Best choice for first aid and shift Light-weight,exquisite and easy to carry Built-in rechargeable li-ion battery, 8-hour battery life Standard configuration: ECG suction bulb - one pair AC adaptor Grounding wire Body/limb clamp - one set Power line Thermal print paper- two rolls Print paper scroll Operation manual Parameters of ECG Machine Operation mode:Manual/Auto/storage Standard 12 leads:real-time ECG waveforms Measure mode:Simultaneously acquisition of 12 lead, Measure frequency:12Bit/1000Hz(1ms) AC filter:50Hz/60Hz EMG filter:25Hz/45Hz Drift filter:Auto adaption CMRR:≥95dB Input circuit:Floating with defibrillation protection Frequent response:0.05-160Hz(-3db) Sensitivity:Auto/2.5/5/10/20/40(mm/mv) Printing:High resolution thermal printer Communication interface:Standard USB/RS232 Safety standard:IEC I CF(GB9706.1-2007) Keypad panel:can input clinic information such as patient names Display:320*240 Graphical LCD Internal power supply:built-in rechargeable li-ion battery for 8-hour battery life External power supply:AC 75V-265V Auto adjustment for wide input range
