Medical control system HU13 series

for operating roomsdigitalwith touchscreen

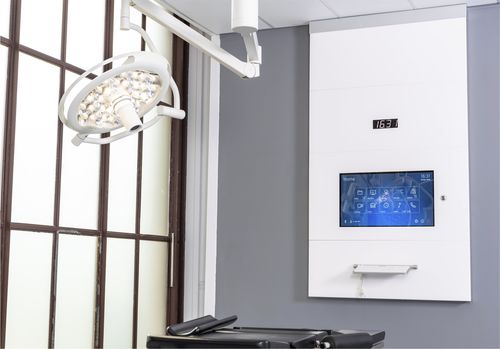

HU13-01 Digital Theatre Control Panel (Surface Mounted) DESCRIPTION The HU13-01 is a theatre control panel solution that provides a digital touchscreen interface to standard theatre services. The panel incorporates low voltage and selected medical gases in its side profiles. AREAS OF USE: Operating Theatres DESIGN: The HU13-01 is a surface mounted theatre control panel solution to provide digital access to standard theatre controls and Supply Services within the operating theatre environment; The tiled solid surface front panels are polished to a satin finish to provide a smooth hygienic exterior; Standard size: 1215 (W) x tba (H) x 120mm (D); Height is dependent on site specifications. SERVICES: The HU13-01 digital theatre control panel provides a touchscreen interface to standard theatre services including (not limited to) PACS, surgical light control, alarms, timers, climate control, audio and communications; Low voltage (LV) and selected medical gases (MG) are integrated into the side profiles; Extra low voltage (ELV) data inputs are integrated into the base of the unit; INSTALLATION: The unit is surface mounted and manufactured to suit the room height where the Supply Services are terminated at the top of the unit; The frame is fastened to the wall with anchors provided and front panels are secured in a tile formation to facilitate ease of installation and maintenance; The unit is manufactured with prepopulated electrical and medical gas outlets, which are tested and validated against international standards, prior to installation. NORMS & CERTIFICATIONS: IEC 60601-1 IEC 60601-2 ISO 11197
