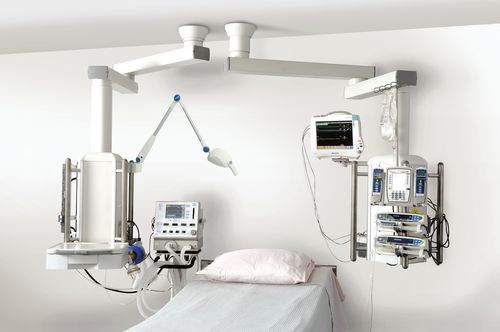

Double medical pendant HU5-T22

ceiling-mountedintensive carearticulated

Pendant Service System (Ceiling mounted) The HU5-T22 is a tandem mount pendant service system with two dual arm articulated vertical service columns. The unit incorporates a friction brake system. AREAS OF USE: High Dependency to Intensive Care Wards DESIGN: The HU5-T22 is a dual ceiling pendant solution for suspending equipment within the patient area; The design comprises a tandem mount pendant service system with two dual arm articulated vertical service columns; The friction brake system operated on the articulated arm and service column can be rotated within 320 degrees to position the Supply Services ergonomically; The design provides unobstructed access around the patient area; The service columns are populated to suit specific needs and the centre fascia can be customised to accommodate interior design intent; 4 x Ø38mm equipment poles are integrated on each corner of the service columns to support medical equipment (*see Attachment range to suit the medical equipment); Self-clamping corner extrusions secure the fascia eliminating visible screws; As a standard, the fascias are offered in a powder coated finish (RAL 9002) with other options available on reques SERVICES: The moveable dual articulated arm service column provides for low voltage (LV), extra low voltage (ELV) and selected medical gases (MG); The product can accommodate various types of electrical and medical gas outlets, fitted to suit the clients’ specifications; All four sides of the service columns are populated with Supply Services to support medical equipment;
