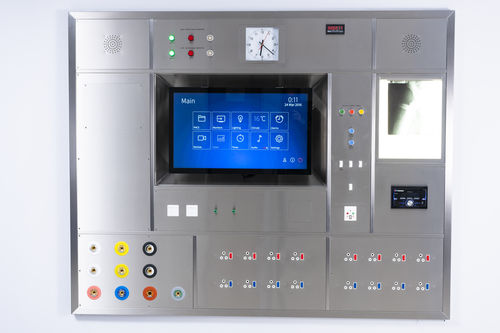

Operating room control unit HU12-MAJ-RS

digitalwith touchscreen

HU12-MAJ-RS or HU12-MIN-RS Theatre Control Panel (Recessed Mounted) The HU12-MAJ and the HU12-MIN-RS are recessed mounted theatre control panel solutions used within operating theatres. AREAS OF USE: Operating Theatres DESIGN: The HU12-MAJ-RS and HU12-MIN-RS is a recessed mounted theatre control panel solution to provide Supply Services to a Major (MAJ) or Minor (MIN) operating theatre; The design comprises of an exposed rigid Grade 304 40x40mm stainless steel framework with segregated service layout; the design allows for recessed architrave to be fitted in the wall cavity prior to panel installation; Modular Grade 304 stainless steel fascias in a brushed finish are fitted with minimal gaps to complete the panel; The panel layout can be configured to suit specific needs and to meet industry standards; Standard sizes: 2000 (L) x 1600 (H) x 150mm (wall depth) 2000 (L) x 935 (H) x 150mm (wall depth) 940 (L) x 1080 (H) x 150mm (wall depth) SERVICES: The HU12 theatre control panel provides for low voltage (LV), extra low voltage (ELV) and selected medical gases (MG); Integrated x-ray viewing panel or medical grade monitor can be accommodated; larm indicators are accommodated on the panel to display service supply integrity; Analog clock and timers are fitted as standard together with audio and communication equipment. INSTALLATION: The architrave is secured in the wall cavity where Supply Services are terminated; The panel is fastened to the architrave with anchors provided; The unit is manufactured with prepopulated electrical and medical gas outlets, which are tested and validated against international standards, prior to installation.
