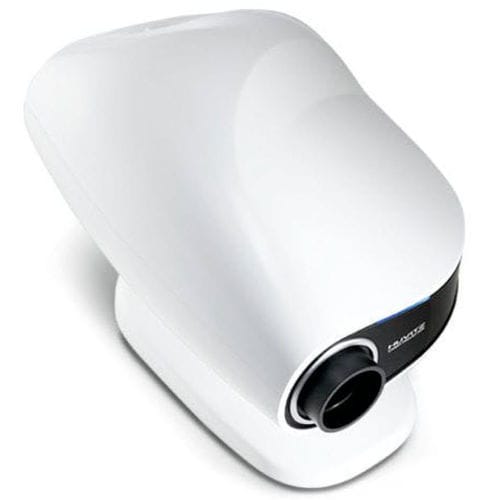

Chart projector with semi-permanent LED light source
1. Various Chart
The HCP-7000 and CCP-3100 with 41 chart including Red/Green and polarizing filters are the new solution for Binocular balance test, Stereo test, Aniseikonia test, Fusion Test.
2. Semi-permanent lifetime LED light source
Brighter and clearer
3. Attractive Design
Attractive Streamlined Shape and Blue Indicator
Specifications
Chart 41 charts 34 masks, Red/Green & Polarization Filters
Projection Distance 2.5~8m
Chart Rotation Speed - Average 0.15 sec
Projection Magnificiation 30 x at 5m
Power Saving Power Saving Automatic Switch off( 10min )
Program 2 programs with a maximum of 30 charts each
Tilt Angle 15º
Power Supply 100-120v 50Hz : 0.6A, 200-240V 60Hz : 0.3A
Lamp LED 4W
Dimension 270(W) x 182(D) x 230(H)mm
Weight 3.44kg
