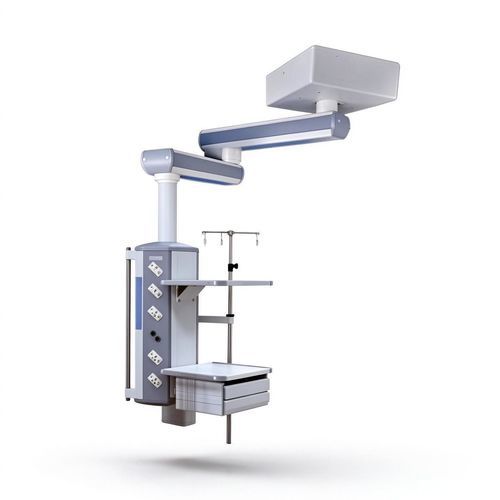

Medical pendant SS90

ceiling-mountedintensive carearticulated

Arm rotating radius: 800mm+800mm Arm rotating angle: 340 Braking system: friction brake Medical gas terminal units (penlon BS standard or DIN standard) 2 off oxygen terminal units 2 off vacuum terminal units 1 off médical air terminal unit Electrical socket (Australia Clipsal / Schneider) 6 off China type 3 pin 10A sockets 2 off earth studs Accessories 2 off equipment shelves 1 off drawer 1 off IV pôle &infusion pump rack Installation Instructions: The related contractor should be responsible for the gas piping/power line/communication line: 1 .Laying medical gas supplying line to the anchor point of the pendant, putting the gas piping into the pendant, angle branch radius:R>=30mm.The diameter requirements for the gas piping: 10mm(suction), others 8mm(oxygen etc). 2. For laying power lines,communication lines to the positioning point of the pendant,the reserved length shall be guaranteed <1 m after spreading to the ground.For power line: 3x2.5mm2, 1x6mm2
