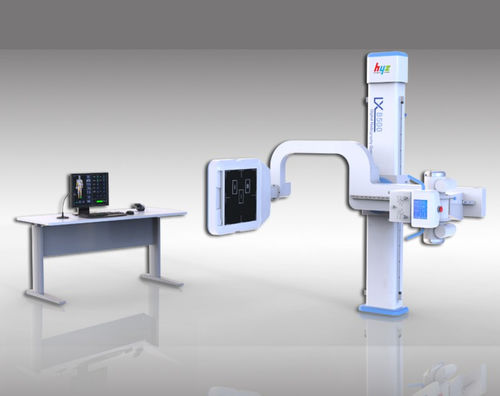

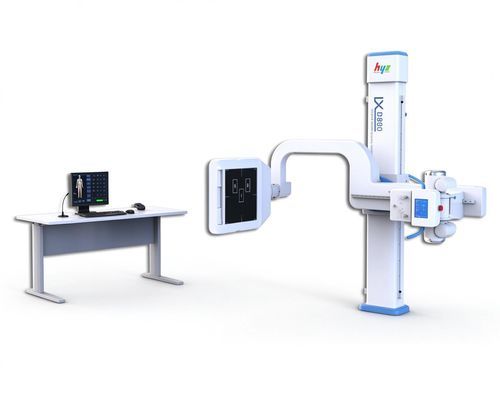

Radiography system LX8500C

digitalfor multipurpose radiographywith swiveling tube stand

1. Type of generator and X-ray tube: Advanced 260kHz high frequency high voltage type generator, realize 1ms instant exposure, high performance. Three exposure method free change: KV, mAs two adjustment, KV, mA, s three adjustment and AEC function(optional), to satisfy different habit of different doctors. lRotate double anode 0.6/1.2, with high heat capacity of 150KHU Digital micro-processed closed loop control and malfunction alarming system to reduce the dose of X-ray protect the patients and doctors very well. LCD touch screen, beautiful appearance and convenience to operate. 2. Flat Panel Detector Apply with A-Si (Amorphous silicon) Toshiba imported Flat panel detector, which could give perfect digital images directly. 3K×3K Acquisition matrix, 143um pixels size, and 3.7Lp/mm ultimate spatial resolution, with DQE values ≥ 70% Shortest imaging time ≤ 9s 17〞×17〞Large acquisition area and with the non-center processing technology, no matter the center and border, the quality of the image is the same. The detector could be rotated ±45 degree along the axis direction, to satisfy the different photograph requirement of every body parts, such as Ankle joint, lateral spine The detector has the self-protection function.It can stop to move when it detect the distance in front of the barrier. 3. Digital Working Station: stration:Auto registration,be equipped with Dicom Worklist SCU. To simplify the input process for doctors,greatly reduce the amount of labour and greatly improve the working efficiency ImageAcquisition: Automatic window adjustment, Automatic cropping, Automatic transmit.
