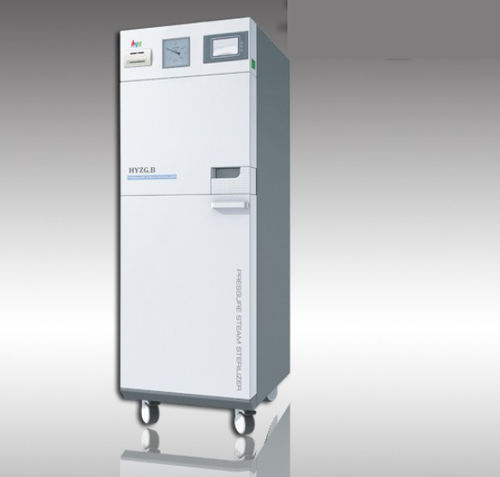

Steam sterilizer HYZG series

medicalhorizontalbuilt-in

HYZG.B Fully Automatic Horizontal Pulse vacuum Autoclave is suitable fro sterilizing unwrapped.wrapped.solid. Hollow A,hollow B,instrument with built-in pipe and implanted instrument which can withstand high temperature and pressure. HYZG.N Fully Automatic Horizontal Non-Pulse vacuum Autoclave is suitable for sterilizing unwrapped,wrapped, dressing,rubber,liquid and lab instruments which can withstand high temperature and pressure Technical advantage 1.PLC control,sixty-five thousand color touch screen,powerful and reliable system. 2.Water injection,pulsing (special for pulse vacuum autoclave),heating up,sterilizing,drying process are fully automatic without artificial regulation 3.Stage,temperature,pressure,time and fault messages are shown on touch screen display. 4.Built-in micro-printer,record the whole sterilization information. 5.Cycle count function 6.Beep sound once,cycle end and messages shown on screen touch display 7.HYZG.B Fully Automatic Horizontal Pulse vacuum Autoclave with built-in high quality vacuum pump,1-6 times pulse vacuum can reach -0.09Mpa(-0.9Bar),to ensure effective removal of air of dressing.sterilization bag and hollow instrument so as to get the optimum saturate steam. 8.Inner circulation structure designed for HYZG.B fully Automatic Horizontal Pulse vacuum Autoclave ,water ring pump without external pipeline,easy to install 9.Unique pulse vacuum drying procedure designed for HYZG.B fully Automatic Horizontal Pulse vacuum Autoclave,residue moisture is less than 0.2% after drying Safety protection device 1.Heater protection:the system will cut off its power supply once the temperature exceeds the desired value and show the alarm information
