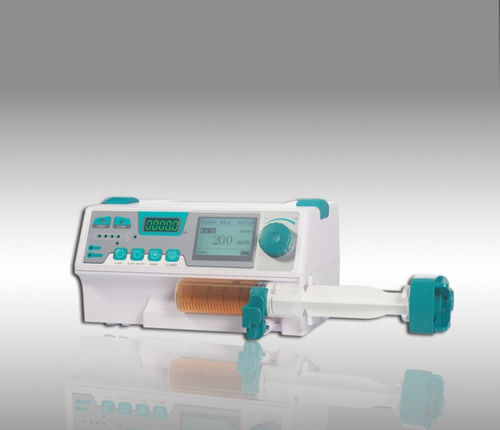

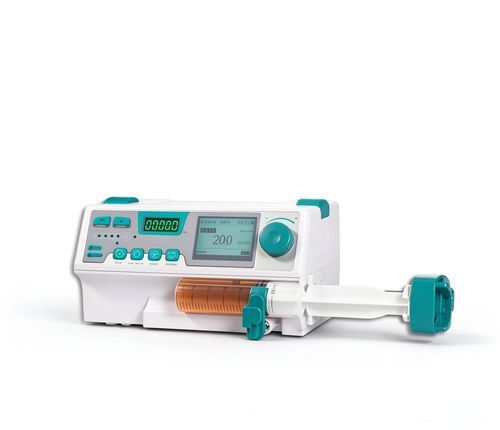

1-channel syringe pump 810
continuousprogrammable

1-channel syringe pump - 810 - HYZMED Medical - continuous / programmable
1-channel syringe pump - 810 - HYZMED Medical - continuous / programmable
Add to favorites
Compare this product


Characteristics

Number of channels
1-channel
Operational mode
continuous
Other characteristics
programmable
Infusion rate

Min.: 0 l/h
(0 us gal/h)

Max.: 0.99 l/h
(0.262 us gal/h)

Syringe volume

10 ml, 20 ml, 30 ml, 50 ml, 60 ml
(0.33814 US fl oz, 0.67628 US fl oz, 1.014421 US fl oz, 1.690701 US fl oz, 2.028841 US fl oz)

Length

280 mm
(11.02 in)

Width

210 mm
(8.27 in)

Height

130 mm
(5.12 in)

Weight

2.2 kg
(4.9 lb)

Description

Freely Stackable: Users can freely stack one syringe pump onto another to provide multiple Solutions, which have a wide range of clinical applications. Transfer the message between the Nurse-call System and the pumps. Unique Human Voice Alarm system and accurate injection rate make the injection process safer and more reliable. Have store many brands syringes ,Automatically calibration and compatible with any brand syringes. Large LCD screen displays working status. KVO and Bolus functions. Technical parameters Unique Human Voice Alarm system The device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable. Special function HYZ-810D With drug library Flow Rate Accuracy: Within ±3% (after correct calibration) Mechanical precision Within ±2% Bolus Rate: 50/60ml Syringe: 1,200ml/h 30 ml Syringe: 720ml/h 20 ml Syringe: 480ml/h 10 ml Syringe: 240ml/h Purge Rate: 50/60ml Syringe: 1,500ml/h 30ml Syringe: 900ml/h 20ml Syringe: 600ml/h 10ml Syringe: 300ml/h Volume Limit: 0.1ml~9999.9ml Total Injection Volume: 0.1ml~9999.9ml (0.1ml step) Occlusion: High: 800mmHg ±200mmHg (106.7kPa±26.7kPa Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa ) Alarms: Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc. Power Source: AC 100V~240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
