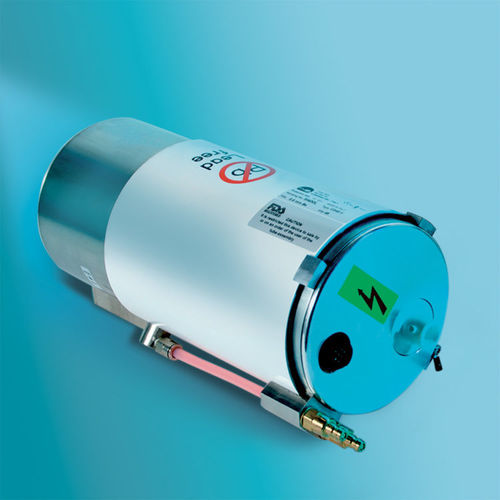

Rotating anode X-ray tube C340Vmammography
Add to favorites
Compare this product
Characteristics
- Tube type
- rotating anode
- Applications
- mammography
- Nominal anode input voltage
Max.: 800 W
Min.: 0 W
- Nominal tube voltage
49 kV
Description
• An external water circulation cooling jacket, in combination with an internal oil circulation system, ensures a heat dissipation three times higher than conventional mammography tube units.
• For thermal protection there is a bimetallic thermal switch internally assembled series connected with stator common cable
Specifications
Overall length 340 mm
Maximum diameter 450 mm
Tube assembly net weight 16 kg
Maximum tube assembly heat content 375 kJ (426 kHU)
Min. tube assembly inherent filtration 0.5 mm-Be
Maximum leakage radiation at 1m from focal spots 45 µmGy/h
