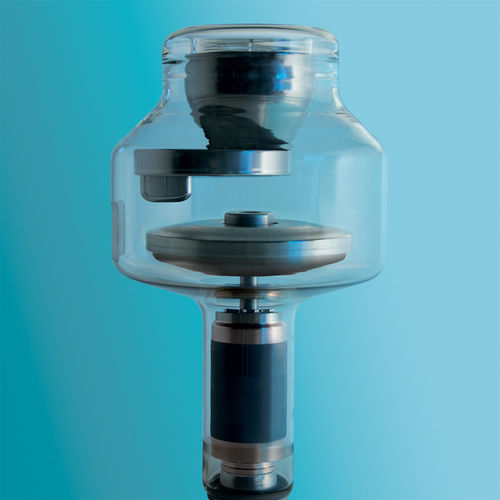

Rotating anode X-ray tube RTC600

Rotating anode X-ray tube specifically designed for high throughput and special applications. Typical purpose is remote controlled tables and digital systems. • High anode heat storage for repeated loading • Enhanced anode heat dissipation provided by high emittance coatings and target design • Focal track in tungsten-rhenium alloy to prevent cracking • Reduced thermal stress on the bearings improves tube life duration • Severe tests during conditioning assure best performances • Available also special versions for: – reloading in GE-CGR and SIEMENS housings (supplied with anode end adaptation piece) Specifications Anode angle and diameter 13°- 102 mm Anode heat storage capacity 450 kJ (600 kHU) Rotating anode speed 3000 – 10000 rpm
