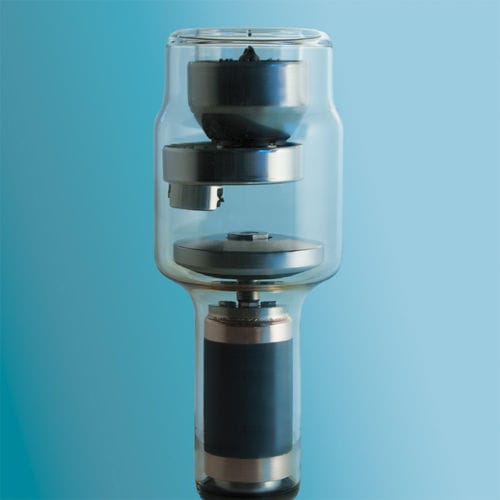

Rotating anode X-ray tube X22P
Add to favorites
Compare this product
Characteristics
- Tube type
- rotating anode
- Nominal anode input voltage
Min.: 0 W
Max.: 300 W
- Nominal tube voltage
130 kV
Description
compact and reliable, specifically designed for monoblocs and mobile systems.
Characteristics
• TZM target with large thermal capacity
• Focal track in tungsten-rhenium alloy to prevent cracking
• HV stability allows longer fluoro procedures
• Severe tests during conditioning assure best performances
Specifications
Anode angle and diameter 16° – 64 mm
Anode heat storage capacity 105 kJ (140 kHU)
Rotating anode speed 3000 rpm
