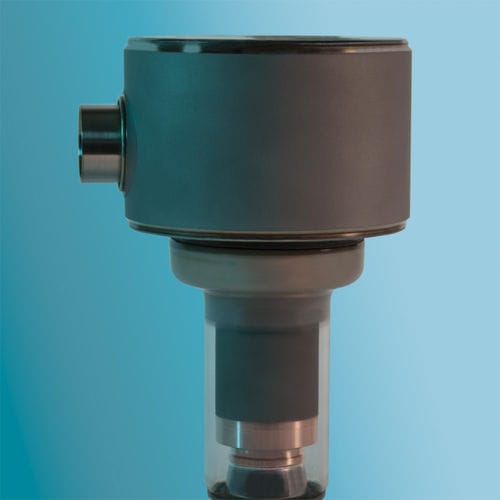

Rotating anode X-ray tube XM1016

mammography

Rotating anode mammography X-ray tube with special bi-angled target, for optimal performances with all techniques. Replaces VARIAN M113SP and M113. Characteristics • Two separeted focal tracks, small focus on 10° and large focus on 16°, optimal resolution performances • Replacement for VARIAN M113SP and M113 • Minimum resolution 14×12 Ip/mm (width x lenght) • Metal center section • Molibdenum doped target • Reduced thermal stress on the bearings improves tube life duration • Severe tests during conditioning assure best performance Specifications Anode angle and diamete double angle target 10° /16° – 80 Anode heat storage capacity 225 kJ (300 kHU) Rotating anode speed 3000 – 10000 rpm Max emission current sF 35 mA – 25 Kv LF 140 mA – 25 Kv IAE HOUSINGS C339E lateral HV and LV sockets, VARIAN version C339C coaxial HV and LV sockets, COMET version C339V coaxial HV and LV sockets, VARIAN version C340V
