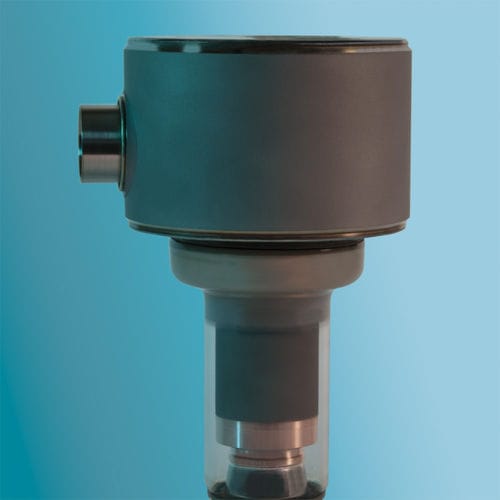

Rotating anode X-ray tube XM65T

mammography

• Metal center section • RTM target • Reduced thermal stress on the bearings improves tube life duration • Severe tests during conditioning assure best performances Specifications Anode angle and diameter 15° – 100 mm Anode heat storage capacity 450 kJ (600 kHU) Rotating anode speed 3000 – 10000 rpm Max emission current sF 35 mA – 25 kV LF 140 mA – 25 kV IAE HOUSINGS C341V
