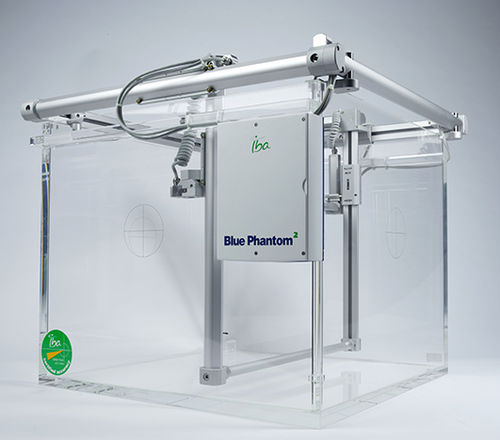

3D Water Phantom System for complete LINAC Commissioning & QA
The Blue Phantom² embodies decades of expertise, research and experience, providing you the best of water phantoms.
*Precision: Unique absolute measurement technology
*Long-term accuracy: High-precision, non-contact position sensor technology w/o non-mechanical wear
*Positioning: Detector positioning certified to ± 0.1 mm accuracy
Description
Fastest, most Accurate and most Reliable Linac commissioning and regular QA
Quality beam scanning is the cornerstone for treatment planning and delivery accuracy. The Blue Phantom², with its scanning software myQA Accept, is the leading water phantom solution for radiation therapy (RT) beam scanning. The system’s unique design facilitates faster and more accurate commissioning of RT treatment systems which is fundamental for safer patient treatments.
The latest Blue Phantom2 is based on over 40 years of experience during which IBA Dosimetry has been providing high quality dosimetry equipment and services to more than 4,000 satisfied water phantom users worldwide.
Technical specs
Exterior water tank dimensions: 675 x 645 x 560 mm
Scanning volume: 480 x 480 x 410 mm
Position resolution: 0.1 mm
Position accuracy: ± 0.1 mm
Scanning speed: 50 mm/s
Wall thickness / material: 15 mm / acrylic
