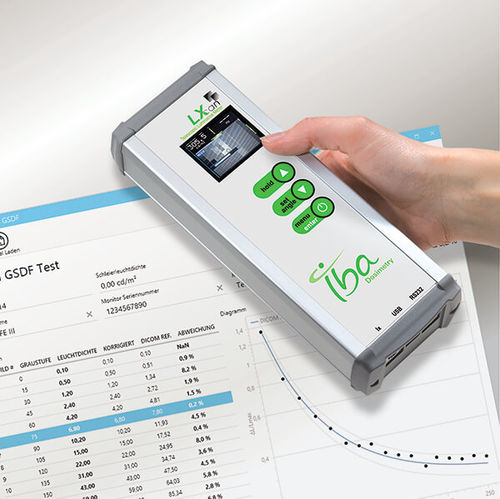

Illumination analyzer LXcan

X-rayfor medical devicesfor diagnostic displays

Spot Luminance Meter for Display QA Display Quality Assurance solutions for Image Display Devices LXcan is a Quality Assurance solution for image display devices, like medical displays and viewing boxes and is needed to ensure best image quality for improved diagnosis in all x-ray modalities, like Radiology, Fluoroscopy, Mammography, CT and dental radiology. For QC-tests at image display devices (grayscale) incl. photometric detector with achromatic optic, integrated scattered light tube and mask for screen contact measurements. Unique Two-in-One design Distance and contact measurement in one device Innovative design Easy targeting with a built-in camera Highly precise real-time measurement Full solution IBAcan Kit Complete measuring kit for luminance measurements at image display devices (grey scale) according to -DIN 6868-157 (acceptance and constancy tests) -IEC 61223-2-5 (constancy tests) -AAPM TG18 What' in the box? -Spot-Luminance-Meter LXcan -Mask for screen contact measurements. -Power supply with 4 adapters (RoHs conform) - USB-cable is absolutely necessary -USB cable for automatic transfer of the measured data and for recharging batteries -Carrying case Display: 1.2'' TFT (65K color) Alignment sensor: user definable Distance sensor: ultrasonic Targeting: display finder F.O.V.: 1.6° Measuring range: 0.05 - 10,000 cd/m2 f1' uncertainty: ≤3% Luminance Measurement Range: 0.05 to 10,000 cd/m2 Maximum Luminance Resolution: 0.03 cd/m2 f1`Uncertainty of V(λ) Response: ≤ 3 % General Uncertainty: ≤ 10 % F.O.V. Lens: ~ 1.6 ° Influence of Outfield Luminance f2 (U): ≤ 0.6 % Stray-Light-Baffle: Integrated Measurement Distance: 50 cm
