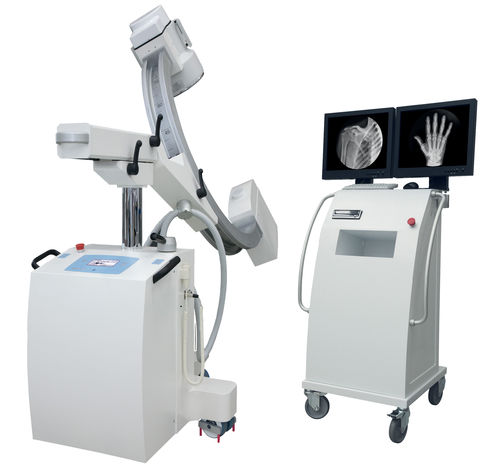

Mobile C-arm SD30 C

with video columnwith small-diameter arc

The 'SD30 C' surgical C-arm is a high performance C-arm using flat panel detector technology. Easy to handle and position, it has been specially designed for use in orthopaedics, trauma and urology operating theatres. It covers a wide spectrum of surgical applications such as: orthopaedics, urology, digestive, treatment of the pain, implantable chamber and pacemaker placement, probe mounting, endoscopy, vascular applications and neurosurgery. The radiological techniques available in the most complete version are: Continuous fluoroscopy Pulsed fluoroscopy Fluoroscopy one shot Low dose fluoroscopy X-ray with cassette In its basic version, the device consists of a stand with a "C" arm called C-arm, a mobile base on wheels, and a rack that contains the low-voltage electronic components of the device, a'' C '' arm carrying the RX tube and an image amplifier with a TV camera. The control panel for operational functions is housed in the upper part of the rack. The device is supplied with a 40 kHz RX generator and an RX tube either with a 120 kV rotating anode or a 110 kV fixed anode. A 9 "or 12" Brightness Amplifier with 3 zooms (3 fields). Conditions of Use: Continuous work with intermittent load. the console includes a touch screen, with display of constants and pre-recorded exams.
