The solution to manage the volume of the prosthetic tooth.

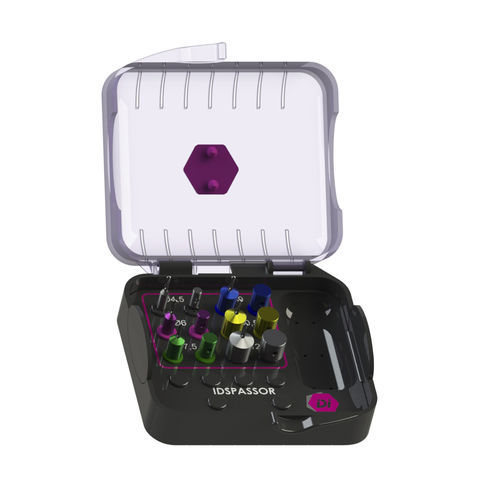

The ID-SPASSOR contains :
- 6 Pointing drills.
Drilling part length :
7 mm and Ø2mm.
- 6 Spacing guides.
From Ø4,5mm to Ø12mm.
The pointing drilling
guide
The drilling guides are
intended to create a
predrilling position for an
implant setting, perfectly
positioned in the middle
of the future prosthetic
tooth.
The spacing guide
materializes the perfect
volume of the prosthetic
tooth.
STEP 1
Use the pointing drill adapted
to the mesio-distal space of the
tooth and stick it to the side of the
adjacent tooth, then drill.
STEP 2
Remove the drill and replace it
by the spacing guide of the same
color.
The ID-SPASSOR contains :
¬ 6 Pointing drills.
Drilling part length :
7 mm and Ø2mm.
¬ 6 Spacing guides.
From Ø4,5mm to Ø12mm.
