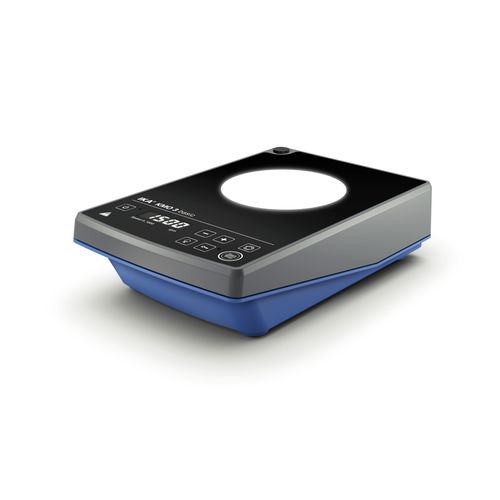

Magnetic laboratory stirrer KMO 3 basic

rotarydigitalheating

The award-winning KMO 3 basic is a small but powerful magnetic stirrer without heating function. It provides: • unique design with glass surface • brilliant, clear white display • illuminated, flat stirring plate • key-lock button • reverse rotation • integrated USB interface (control via labworldsoft and use of Firmware Update Tool) • recessed thread for support rod • protection class IP42 Technical Data Number of stirring positions: 1 Stirring quantity max. per stirring position (H2O): 5 l Motor rating output: 9 W Direction of rotation: right / left Speed display set-value: LED Speed control: Touch key Setting accuracy speed: 10 rpm Stirring bar length: 20 - 80 mm Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h): 2 +K Set-up plate material: glass Set-up plate dimensions: 140 x 120 mm Automatic reverse rotation: yes Set-up plate illuminated: yes Illumination level max.: 15000 lx Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C): 2 ±% Dimensions (W x H x D): 153 x 62.5 x 227 mm Weight: 1.471 kg Permissible ambient temperature: 5 - 40 °C Permissible relative humidity: 80 % Protection class according to DIN EN 60529: IP 42 USB interface: yes Voltage: 100 - 240 V Frequency: 50/60 Hz Power input: 13 W Power input standby: 0.8 W DC Voltage: 24 V= Current consumption: 500 mA
