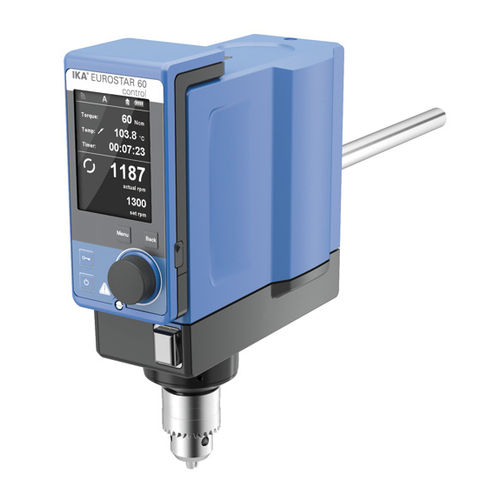

Overhead laboratory stirrer EUROSTAR 60 control

digital

Powerful laboratory stirrer designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30-2000|0/30-1300|0/6-2000 rpm. The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. • TFT display • Programmable functions • Integrated temperature measurement • Interval operation • Timer function • Adjustable safety circuit • Locked function • Infinitely adjustable speed • Push-through agitator shafts • Overload protection • Short-term overload operation • Quiet operation • Error code display • H 67.60 temperature sensor and WH 11 WiCo holder Stirring quantity max. per stirring position (H2O): 40|100|100|150 l Motor rating input: 168|174|135|220 W Motor rating output: 131|142|84|176 W Motor principle: Brushless DC Viscosity max.: 50000|70000 mPas Output max. at stirring shaft: 126|136|84|176 W Permissible ON time: 100 % Torque max. at stirring shaft: 60|100|200|400 Ncm Speed control: stepless Setting accuracy speed: 1 ±rpm Deviation of speed measurement n > 300rpm: 1 ±% Deviation of speed measurement n < 300rpm: 3 ±rpm Stirring element fastening: chuck
